pmdc motor features
Power Range
- 1/20 to 5 HP
- Rated (continuous) power 1 to 2 HP*
- Rated (continuous) torque up to 6 lbs⋅ft
- Continuous or intermittent duty cycles to meet customer requirements
* Dependent upon motor enclosure
SPEED RANGE
- 500 — 5,000 RPM
VOLTAGE
- 12 to 180 volts
BEARING
- Bearings are sized per application requirements
- Multiple grease options are available, including sealed and high and low temperature

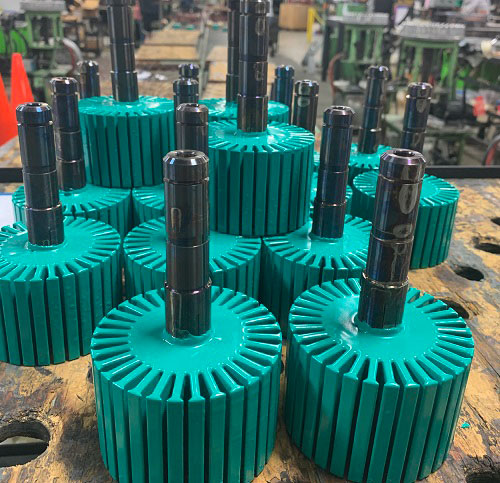

STANDARD FEATURES
- Class H insulation, rated for class F operation
- Convenient external brush access
- Excellent heat dissipation conditions
- Heavy-duty, sealed ball bearing construction
- High startup torque
- Low loss steel laminations
- NEMA rated magnet wire
- NEMA standard configurations
- Power off dynamic braking
- Precision dynamic balancing
- Two leads inputs for control circuitry simplification
- 12-month warranty
