PMDC MOtor OPTIONS

Motor options

  • Explosion Proof Motors
  • Hydraulic Pump Motors
  • Material Handling Motors
  • SCR (Silicone Controlled Rectifier) Motors
  • Wound Field Motors

MAGNETS

  • High Energy Ceramic Ferrite

Frames

  • NEMA 42 frame
  • NEMA 48 frame
  • NEMA 56 frame
  • NEMA 180 frame

Mounting

  • Footed
  • C-Face Footed/Footless
  • D-Flange Footed/Footless
  • Custom Configurations Available

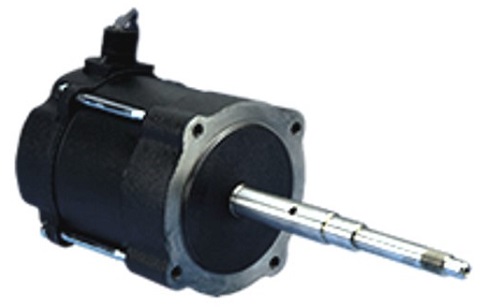

C-Face Footless

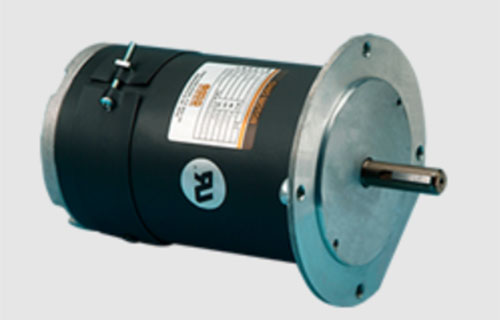

D-Flange Footless
C-Face Footed

Output Shafts Options

Custom Configurations Available

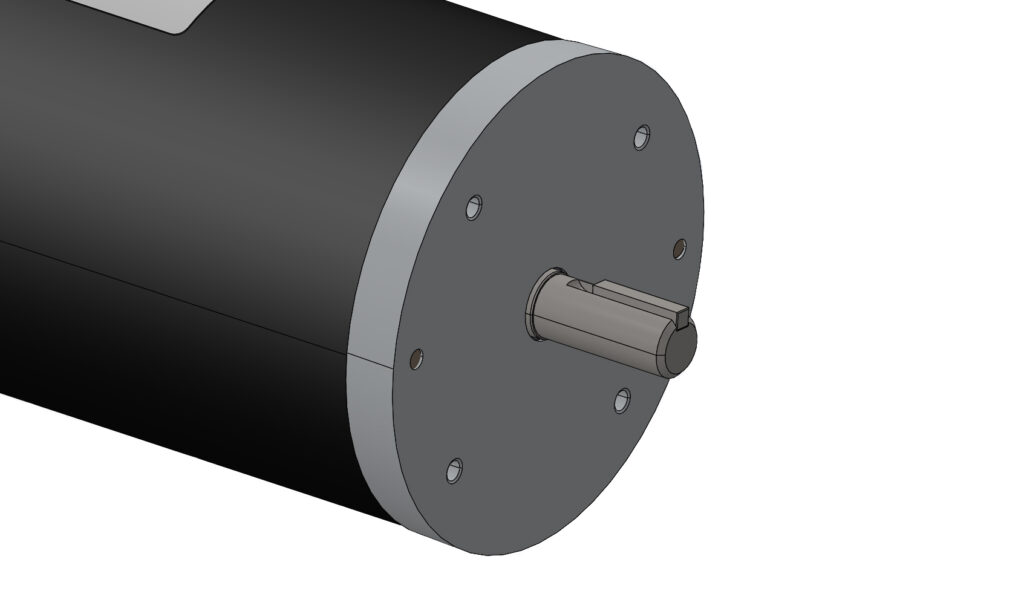

Keyed Shaft

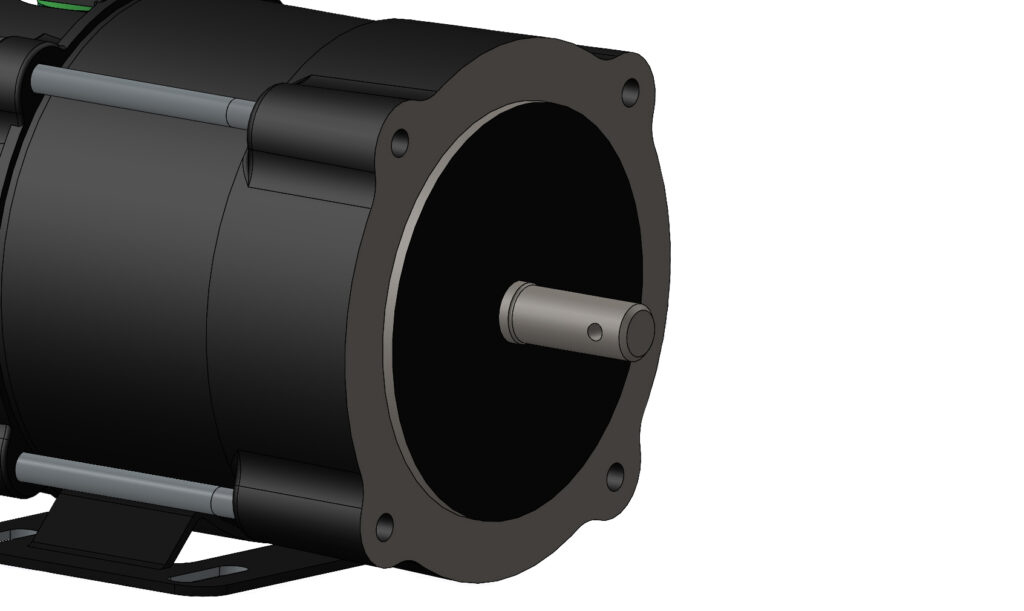

Drill Through Shaft

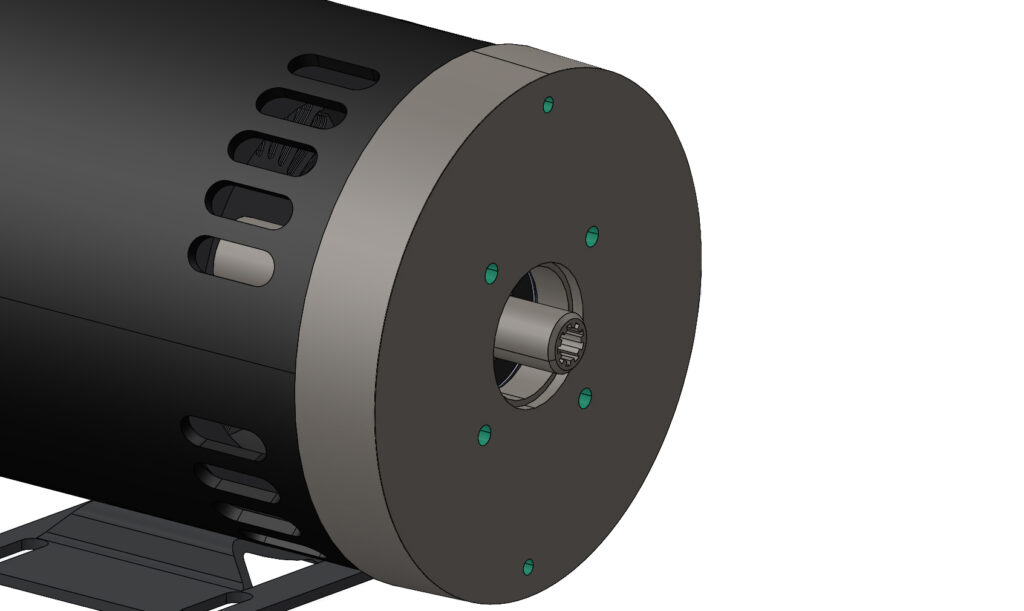

Internal Splined Shaft

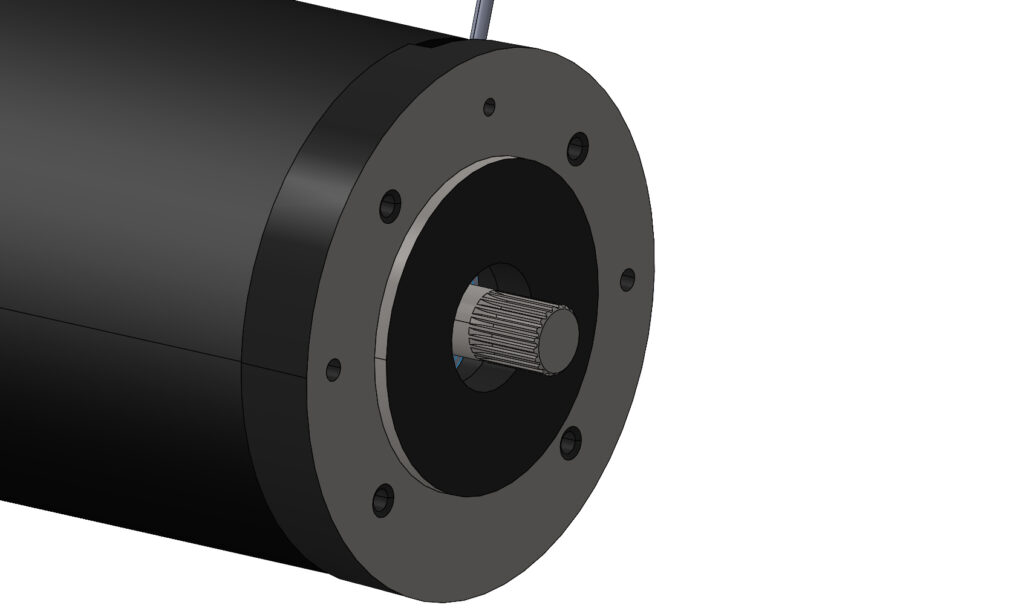

External Splined Shaft

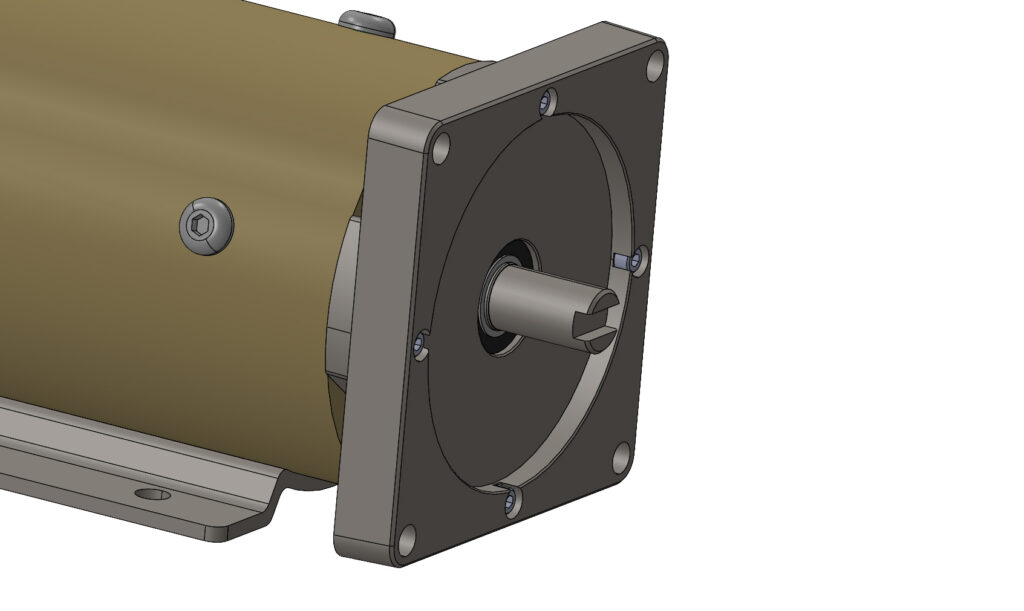

Slotted Shaft

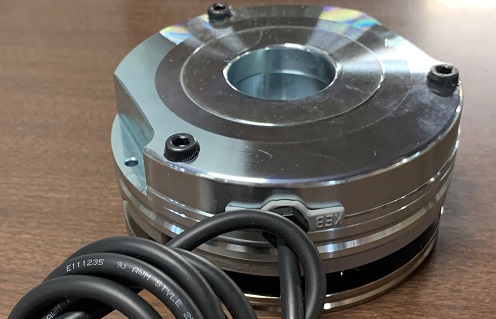

Brakes

  • Static holding brake available

Environmental Coatings Options

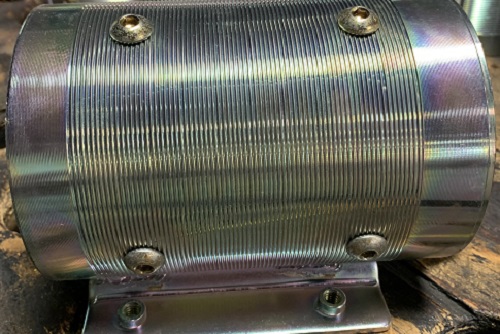

  • Anti-rust zinc coating

NEMA Enclosure Options

  • Open Drip Proof (ODP)
  • Open Fan Cooled (OFC)

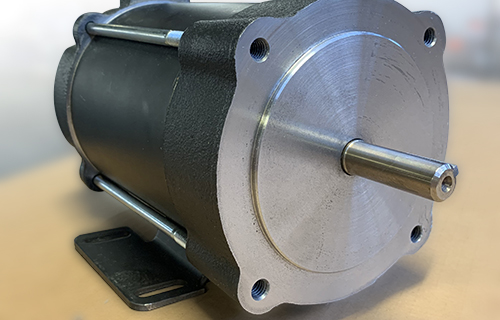

  • Totally Enclosed Explosion Proof (TEXP)
  • Totally Enclosed Non-Ventilated (TENV)
  • Totally Enclosed Fan Cooled (TEFC)

Motor Options

  • Motor temperature sensors (thermal protectors)
  • Skewed stack design for low cogging
  • Motor brush wear indicators

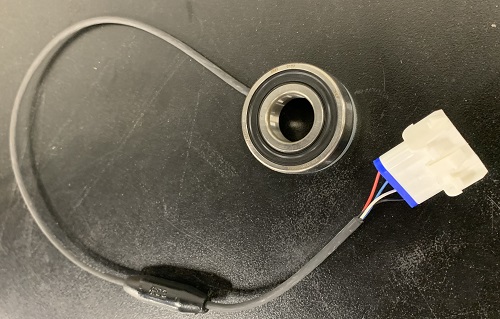

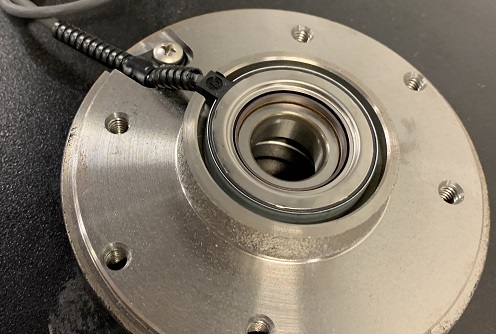

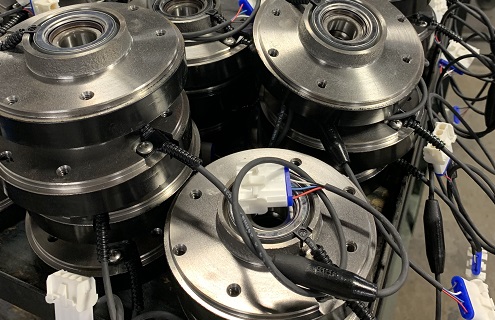

  • Sensor bearings
  • Electrical design is compatible with SCR controllers of the full wave or pulse width modulated type.
    • Controllers should incorporate a freewheeling diode across the output.

Hazardous Location

  • Class 1 Div. 1
  • UL and CSA Listed (Class 1, Group C, D; Class 2, Group F, G)
